Flanges

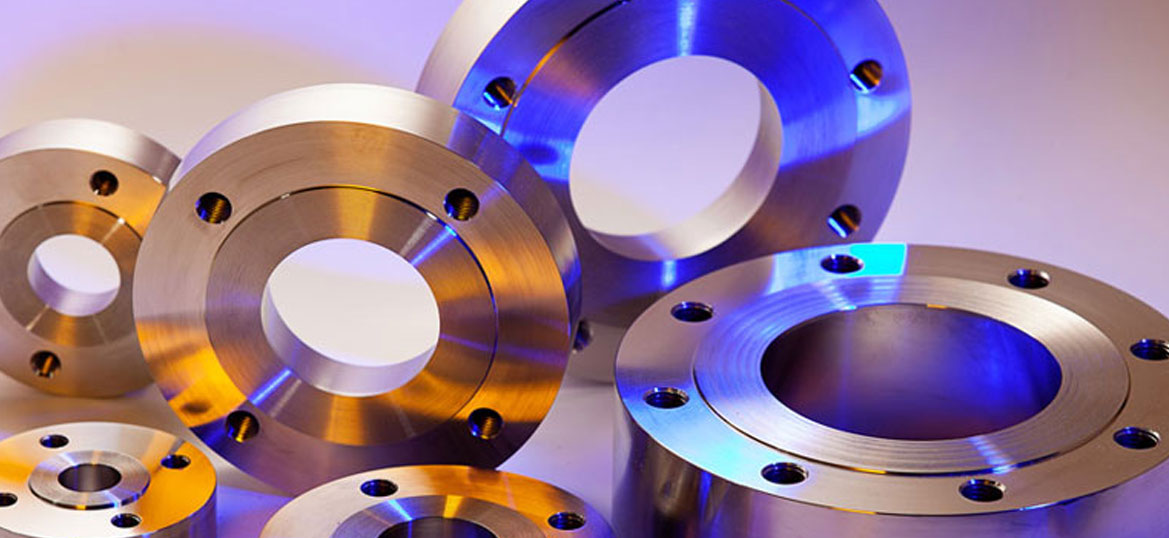

Our range of industrial flanges are ideal for application in diverse industry for high pressure and temperature applications. These flanges are designed with precision for easy installation. Apart from standard flanges, we also offer custom designed flanges to meet the specific application requirements of the customers.
Specification/ Dimension of Slip On flanges 150 Lbs
| Drilling | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Nominal Bore | Dia.(D) | Thick.(E) | Dia.(F) | Dia.(B) | Dia.(A) | Height1(H) | Nbr | Holes | Dia.(C) |
| 1/2″ | 90 | 9.6 | 35.05 | 30 | 22.2 | 14 | 4 | 15.87 | 60.3 |
| 3/4″ | 100 | 11.2 | 42.93 | 38 | 27.7 | 14 | 4 | 15.87 | 69.9 |
| 1″ | 110 | 12.7 | 50.80 | 49 | 34.5 | 16 | 4 | 15.87 | 79.4 |
| 1 1/4″ | 115 | 14.3 | 63.50 | 59 | 43.2 | 19 | 4 | 15.87 | 88.9 |
| 1 1/2″ | 125 | 15.9 | 73.15 | 65 | 49.5 | 21 | 4 | 15.87 | 98.4 |
| 2″ | 150 | 17.5 | 91.95 | 78 | 61.9 | 24 | 4 | 19.05 | 120.7 |
| 2 1/2″ | 180 | 20.7 | 104.65 | 90 | 74.6 | 27 | 4 | 19.05 | 139.7 |
| 3″ | 190 | 22.3 | 127.00 | 108 | 90.7 | 29 | 4 | 19.05 | 152.4 |
| 3 1/2″ | 215 | 22.3 | 139.70 | 122 | 103.4 | 30 | 8 | 19.05 | 177.8 |
| 4″ | 230 | 22.3 | 157.22 | 135 | 116.1 | 32 | 8 | 19.05 | 190.5 |
| 5″ | 255 | 22.3 | 185.67 | 164 | 143.8 | 35 | 8 | 22.22 | 215.9 |
| 6″ | 280 | 23.9 | 215.90 | 192 | 170.7 | 38 | 8 | 22.22 | 241.3 |
| 8″ | 345 | 27.0 | 269.75 | 246 | 221.5 | 43 | 8 | 22.22 | 298.5 |
| 10″ | 405 | 28.6 | 323.85 | 305 | 276.2 | 48 | 12 | 25.40 | 362.0 |
| 12″ | 485 | 30.2 | 381.00 | 365 | 327.0 | 54 | 12 | 25.40 | 431.8 |
| 14″ | 535 | 33.4 | 412.75 | 400 | 359.2 | 56 | 12 | 28.57 | 476.3 |
| 16″ | 595 | 35.0 | 469.90 | 457 | 410.5 | 62 | 16 | 28.57 | 539.8 |
| 18″ | 635 | 38.1 | 533.40 | 505 | 461.8 | 67 | 16 | 31.75 | 577.9 |
| 20″ | 700 | 41.3 | 584.20 | 559 | 513.1 | 71 | 20 | 31.75 | 635.0 |
| 24″ | 815 | 46.1 | 692.15 | 663 | 616.0 | 81 | 20 | 34.92 | 74 |
|
Stainless Steel
|
ASTM A182 & A240 - TP304, 304L, 304H, 316, 316L, 316H, 316Ti, 309, 310, 317L, 321, 347, 904L |
|---|---|
|
Titanum
|
ASTM B381 Gr 1, 2, 3, 5 (6AL - 4V), 7, 9, 11, 12, 23 (6AL -4V ELI) |
|
High Nickel Alloys
|
ASTM B564 / B335 / B649 / B462 / B151 - Hastelloy, Nickel, Monel, Inconel, Incoloy, Alloy 20 & Cupro Nickel |
|
Duplex
|
ASTM A182 / UNS S31803 & S32205 (2205) |
|
Super Duplex
|
ASTM A182 / UNS S32750 (2507) & S32760. |
|
TEST CERTIFICATES
|
MTC, IBR & Third Party Inspection |
Stainless & Duplex Steel Flanges
Grade :
Duplex 2205, LDX 2101, Super Duplex 2507,
Zeron 100,
Duplex2304, AL-6XN, 904/L, 254 SMO, 253 MA®, 321, 409, 330, 347, 309/S,
310/S,
317/L, 304, 304/L, 304H, 316/L, 316H, 333, 410/S, 430, 15-5PH, 17-4PH,
17-7PH, Alloy
20
Range :
15 NB UP TO 600 NB IN 150 LBS , 300 LBS, 400 LBS , 600 LBS , 900 LBS ,
1500 LBS ,
2500 LBS / TABLE 2.5 , TABLE 6 , TABLE 10, TABLE 16,TABLE 25 , TABLE 40,
TABLE 64,
TABLE 160, TABLE 320, TABLE 400
Form :
Slip On , Socket Weld , Blind , Lapped , Screwed , Weld Neck , Reducing
, Spectacle
,Slip On Boss , Plate , Plate Blank , Screwed Boss.
Stainless Steel :
ASTM / ASME SA 182 F 304 , 304L , 304H, 309H, 310H , 316 , 316H , 316L ,
316 LN ,
317 , 317L , 321 , 321H , 347H .
Duplex Steel :
ASTM / ASME SA 182 F 44 , F 45 , F51 , F 53 , F 55 , F 60 , F 61.
Nickel Flanges
Range :15 NB UP TO 600 NB IN 150 LBS , 300 LBS, 400 LBS , 600 LBS , 900 LBS , 1500 LBS , 2500 LBS / TABLE 2.5 , TABLE 6 , TABLE 10, TABLE 16,TABLE 25 , TABLE 40, TABLE 64, TABLE 160, TABLE 320, TABLE 400
Grade :
Nickel 200 (UNS No.2200), Nickel 201 (UNS No.2201), Nickel 205 (UNS N0.2205)
Form :
Slip On , Socket Weld , Blind , Lapped , Screwed , Weld Neck , Reducing , Spectacle ,Slip On Boss , Plate , Plate Blank , Screwed Boss
Nickel Alloy :
ASTM / ASME SB 564 UNS 2200 ( NICKEL 200 ) , UNS 4400 (MONEL 400 ) , , UNS 8825 INCONEL (825) , UNS 6600 (INCONEL 600 ) , UNS 6601 ( INCONEL 601 ) , UNS 6625 (INCONEL 625) ,UNS 10276 ( HASTELLOY C 276) ASTM / ASME SB 160 UNS 2201 (NICKEL 201 ) ASTM / ASME SB 472 UNS 8020 ( ALLOY 20 / 20 CB 3 ).
Hastelloy Flanges
Size :1/2"NB to 12"NB
Grade :
C276(UNS N10276), C22(UNS N06022), b-2(UNS N010665), b-3(UNS N010675), X(UNS N06002)
Standard :
ASTM, ASME, API, AISI, BS, ANSI, DIN, JIS, MSSP, NACE
Types :
Socket Weld, Slip On, Blind, Lapped, Screwed, Weld Neck, Long Weld Neck, Reducing, Spectacle, Ring Joint.
Features :
Durability Corrosion resistance Dimensional accuracy High strength Excellent finish
Inconel Flanges
Size :1/2 inch - 48 inch (15mm - 1200mm)
Grade :
600(UNS N06600), 601(UNS N06601), 625(UNS N06625), 718(UNS N07718)
Standard :
ANSI/ASME B16.5, ANSI B16.47 API, DIN, JIS, BS
Types :
Socket Weld, Slip On, Blind, Lapped, Screwed, Weld Neck, Long Weld Neck, Reducing, Spectacle, Ring Joint
Features :
Durability Corrosion resistance Dimensional accuracy High strength Excellent finish
Incoloy Flanges
Flanges Range :DN15 Upto DN1800 IN 150 LBS, 300 LBS, 400 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS / TABLE 2.5, TABLE 6, TABLE 10, TABLE 16, TABLE 25, TABLE 40, TABLE 64, TABLE 160, TABLE 320, TABLE 400
Grade :
Incoloy 800(UNS N08800), Incoloy 800H / HT (UNS N08810), Incoloy 825 (UNS N08825)
Standard :
ANSI/ASME B16.5, ANSI B16.47 API, DIN, JIS, BS
Types :
SORF, BLRF, WNRF, SOLJ
Features :
Durability Corrosion resistance Dimensional accuracy High strength Excellent finish
Monel Flanges
Range :1/2" NB to 60" NB
Grade :
K400(UNS N04400), K500(UNS N05500), R-405 (UNS N04405)
Types :
Socket Weld, Slip On, Blind, Lapped, Screwed, Weld Neck, Long Weld Neck, Reducing, Spectacle, Ring Joint
Features :
Durability Corrosion resistance Dimensional accuracy High strength Excellent finish
Aluminium Flanges
Dimensions :ANSI/ASME B16.5, B 16.47 Series A & B, EN-1092, BS4504, BS 10, B16.48, DIN, etc.
Grade :
Aluminium 6063, 6082 T6/T651, 6061 T6/T651, 5052, 5083, 5086, 7075, 1100, 2014, 2024
Types :
Socket Weld, Slip On, Blind, Lapped, Screwed, Weld Neck, Long Weld Neck, Reducing, Spectacle, Ring Joint
Class :
150#, 300#, 825#, 900#, 1500# & 2500#
Titanium Flanges
Standards :DIN,ASTM,BS.
Grade :
Gr2, Gr5, Gr7, Gr9.
Features :
Low density, rustless, good antiwear property, high strength. Size:Set the size according to the customers' requirements.
Size :
Set the size according to the customers' requirements. strength :
Superior Quality, Fast delivery, Competitive price as well as humanized after-sales service.
