Buttweld Fittings
Buttweld fittings achieve a lot of admiration of deference by our customers attributable to its high strength, dimensional correctness, high tension power, corrosion resistant and consistency. These items are utilized in different business, mechanical and car enterprises. We produce these fittings utilizing high grade of raw material by implementing most ultra modern technology. These items are customers can profit from us at different sizes, shapes and design as per the requirements. As an one of the prominent industry Dhairya Alloys offers variations of Duplex S31803 Buttweld Pipe Fittings, Super Duplex Stainless Steel Buttweld Fittings, Stainless Steel 321 Pipe Fittings, Stainless Steel 316L Buttweld Fittings, Stainless Steel 304L Buttweld Fittings Manufacturers in India
Buttweld Fittings Specification
| Pipe Fittings Specifications | ASTM A403/ ASME SA403 |
|---|---|
| Pipe Fittings size | Seamless Butt Weld Fittings : 1/2" - 10" Welded Butt Weld Fittings : 1/2" - 48" |
| Pipe Fittings Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10 |
| Buttweld Fittings Thickness | SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75 |
| Buttweld Pipe FittingsType | DN15-DN1200 |
| ASTM A403 SS Buttweld Fitting Connection | Welding |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom ASTM A403 Grade WP Pipe Fitting |
| Size Range | ½" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) ASTM A403 WP Buttweld Fitting |
| ASTM A403 SS Buttweld Fittings Manufacturing process | Push, Press, Forge, Cast, etc. |
| Buttweld Pipe Fittings Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| SA 403 Pipe Fittings Origin & Mills | Japanese, Indian, USA, Korean, European, Ukraine, Russian |

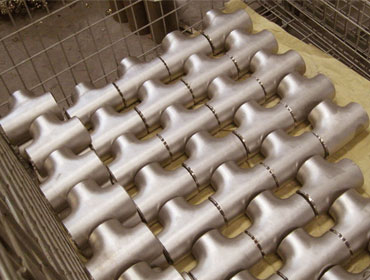

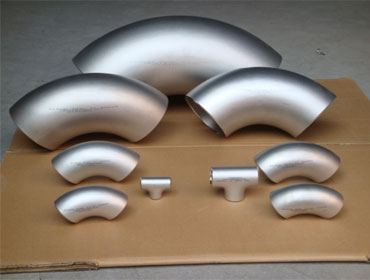

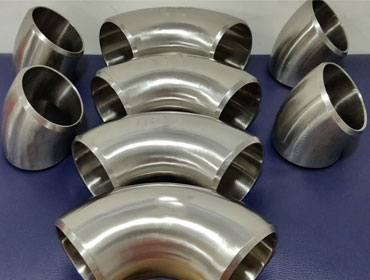

| Specialized manufacturer of | 90º Elbows, 45º Elbows, Tees, Cross, Reducer, Pipe Cap, Stub End, Pipe Bend |
| We provide Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
Manufacturing Standards of Stainless Steel Buttweld Fittings
| ASME B16.9 ASTM A403 Pipe Fittings | Factory-Made Wrought Buttwelding Fittings | Long Radius Elbows, Long Radius Reducing Elbows, Long Radius Returns, Short Radius Elbows, Short Radius 180-deg Rerurns, 3D elbows, Straight Tees, Straight Crosses, Reducing Outlet Tees, Reducing Outlet Crosses, Lap Joint Stub Ends, Caps, Reducers |
| ASME B16.28 | Short Radius Elbows, Short Radius 180-deg Returns | |
| MSS SP43 | Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications | Long Radius Elbows, Straight and Reducing-on-the-Outlet Tees, Lap Joint Stub ends, caps, long radius 180 Degree returns, concentric reducers, eccentric reducers |
| Mss SP75 | Long Radius Elbows, 3R elbows, straight tees, reducing outlet tees, caps, reducers |
|
Stainless Steel
|
ASTM A182 & A240 - TP304, 304L, 304H, 316, 316L, 316H, 316Ti, 309, 310, 317L, 321, 347, 904L |
|---|---|
|
Titanum
|
ASTM B381 Gr 1, 2, 3, 5 (6AL - 4V), 7, 9, 11, 12, 23 (6AL -4V ELI) |
|
High Nickel Alloys
|
ASTM B564 / B335 / B649 / B462 / B151 - Hastelloy, Nickel, Monel, Inconel, Incoloy, Alloy 20 & Cupro Nickel |
|
Duplex
|
ASTM A182 / UNS S31803 & S32205 (2205) |
|
Super Duplex
|
ASTM A182 / UNS S32750 (2507) & S32760. |
Stainless Steel Buttweld
Range : 15 NB UP TO 1200 NB IN SCH 5S , 10S ,10, 20 , 40S , 40 , STD , 60 , 80S , 80 , XS , 100 , 120 , 140 , 160 & XXS.
Types : Long/short radius elbows, equal/unequal tees, concentric/eccentric reducers, caps, cross, short/long neck stub-ends
Available Grade: 303, 304, 304L, 316, 316L, 316Ti, 310, 310S, 321, 317L, 347, 347H, 904L, 17 4PH, 15 5PH, 410, 420,
Nickel Alloy Buttweld
Range :15 NB UP TO 1200 NB IN SCH 5S , 10S ,10, 20 , 40S , 40 , STD , 60 , 80S , 80 , XS , 100 , 120 , 140 , 160 & XXS.
Types : Long/short radius elbows, equal/unequal tees, concentric/eccentric reducers, caps, cross, short/long neck stub-ends
Available Grade: INCONEL 600, 601, 625, 718, 800, 800H, 800HT,825, 925. SMO 254, ALLOY 20(20CB3), MONEL 400, 500K, RA 330, HASTELLOY C-276, HASTELLOY B2, B3, TITANIUM Gr 1 to 12
Duplex/ Super Duplex Buttweld
Range :15 NB UP TO 1200 NB IN SCH 5S , 10S ,10, 20 , 40S , 40 , STD , 60 , 80S , 80 , XS , 100 , 120 , 140 , 160 & XXS.
Types : Long/short radius elbows, equal/unequal tees, concentric/eccentric reducers, caps, cross, short/long neck stub-ends
Available Grade: UNS S31803 (F51), UNS S2205 (F60), UNS S32750 (F53), UNS S32760 (F55)
Copper Nickel Buttweld
Range :15 NB UP TO 1200 NB IN SCH 5S , 10S ,10, 20 , 40S , 40 , STD , 60 , 80S , 80 , XS , 100 , 120 , 140 , 160 & XXS.
Types : Long/short radius elbows, equal/unequal tees, concentric/eccentric reducers, caps, cross, short/long neck stub-ends
Available Grade: Copper Nickel 90/10 and Copper Nickel 70/30
